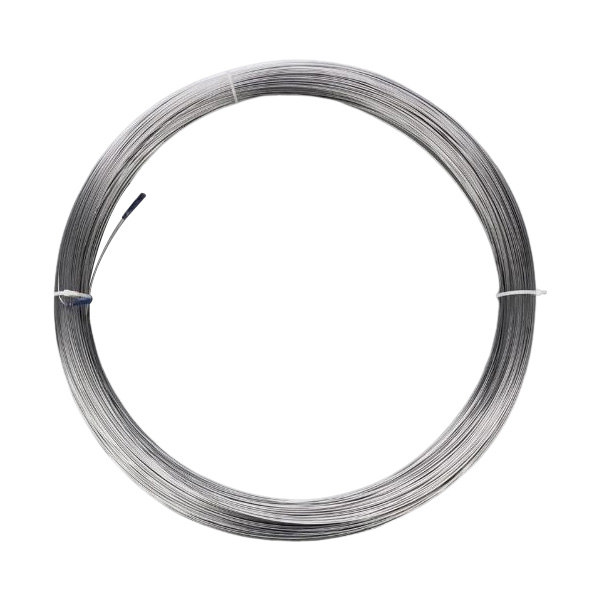

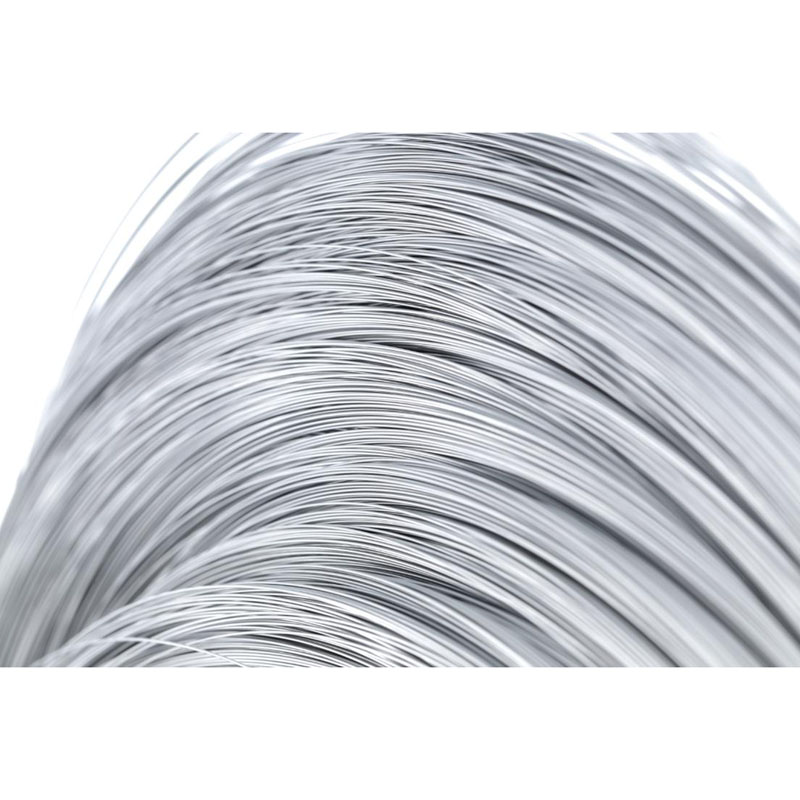

Bright stainless steel wire is available for choice with size range of 0.18mm to 4.00mm in for types of 302,304 and 316 according to international standard ASTM A313/JIS G4314/EN 10270-3.
Packing
Packings for Bright stainless steel wires are available in coils,with spools,pallets and wooden cases.
In Coils
Wooden Case
Pallet
Plastic Spools
| Norminal Diameter(mm) | Packing | Approx. Weight |
| 0.25-0.35 | DIN200 Spool/Coil | 10-20kg |
| 0.35-0.60 | DIN250 Spool/Coil | 15-30kg |
| 0.60-1.50 | Coil | 50kg |
| 1.50-2.00 | Coil | 50kg |
| 2.00-4.00 | Coil | 100kg |
Chemical composition
| Grades | Chemical Composition | |||||||||
| ASTM | JIS | EN | C | Si | P | S | N | Mn | Cr | Ni |
| 304 | SUS304 | 1.4301 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | -- | ≤2.00 | 18.00-20.00 | 8.00-10.50 |
| 304L | SUS304L | 1.4306 | ≤0.03 | ≤1.00 | ≤0.045 | ≤0.03 | -- | ≤2.00 | 18.00-20.00 | 8.00-11.00 |
| 304H | SUS304H | 1.4948 | 0.04-0.10 | ≤1.00 | ≤0.045 | ≤0.03 | -- | ≤2.00 | 18.00-20.00 | 8.00-11.00 |
| 316 | SUS316 | 1.4401 | ≤0.08 | ≤1.00 | ≤0.035 | ≤0.03 | -- | ≤2.00 | 16.00-18.00 | 10.00-14.00 |
| 302 | SUS302 | 1.4310 | ≤0.15 | ≤1.00 | ≤0.045 | ≤0.03 | -- | ≤2.00 | 17.00-19.00 | 8.00-10.00 |
