1. Product Introduction
The Nickel plated stainless steel wire is made of high quality alloy wire with high-temperature-proof and corrosion-resisitant mateirals of stainless steel 304H-316L,according to international standard ASTM A313/JIS G4314/EN 10270-3.The Nickel plated stainless steel wire is widely used for spring producing,including compression spring,tension spring,torsion spring for automobile industry and electrical appliances.
2.Product Parameter (Specification)
Norminal Diameter(mm) |
Tolerance(mm) |
Surface Finish |
Tensile Strength (N/mm2) |
Plate Thickness(μm) |
0.40 |
±0.005 |
Bright |
1950-2200 |
>2.5 |
0.45 |
±0.005 |
|
1950-2200 |
>2.5 |
0.50 |
±0.005 |
|
2000-2100 |
>3.0 |
0.60 |
±0.005 |
|
2000-2100 |
>3.0 |
0.70 |
±0.005 |
|
1950-2050 |
>3.0 |
0.80 |
±0.005 |
|
1850-2000 |
>3.0 |
0.90 |
±0.005 |
|
1850-2000 |
>3.0 |
1.00 |
±0.005 |
|
1750-1900 |
>3.0 |
1.20 |
±0.005 |
|
1750-1900 |
>3.0 |
3.Product Details
The Nickel plated stainless steel wire can be available for choice with size range of 0.40mm to 1.20mm in bright finish.
4.Packing:
We can arrange packing with coils,spools,pallets and wooden cases.

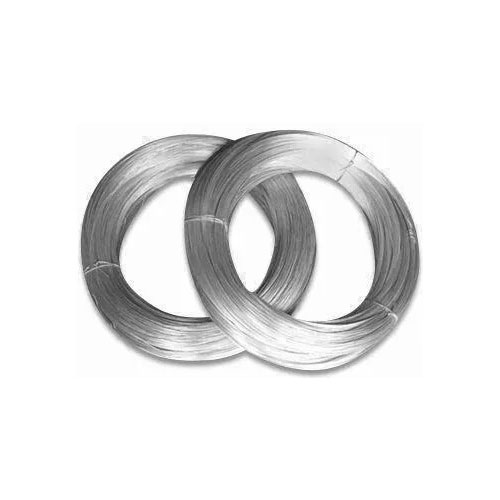

Coils
Plastic spools
Norminal Diameter(mm) |
Packing |
Approx. Weight |
0.40-0.60 |
DIN250 Spool/Coil |
15-30kg |
0.60-1.20 |
Coil |
50kg |
6.Advantages:
-Elemental composition is more stable;
-Better in corrosion resistance and high temperature proof,suitable for strong corrosive and high temperature environment;
-Steel ring quality:the surface of the product is smooth without cracks,safe to use;
-The products strictly use standard raw materials,and strictly control the product quality during the production process.
