Nickel Plated Steel Wire
Ningbo Dingyan Metal Products Co.,Ltd. is a professional manufacturer and supplier of Nickel plated steel wire from China,we have been specialized in spring wire for years.With high quality and competitive price,we have won good feedback from our customers all over the world. We welcome all the customers and partners to visit our factory for the win-win business cooperation.
Send Inquiry
PDF DownLoad
Product Description
1. Product Introduction
The Nickel plated steel wire is made of high quality alloy wire with high-temperature-proof and corrosion-resisitant mateirals of steel wire ,according to international standard ASTM A313/JIS G4314/EN 10270-3.The Nickel plated steel wire is widely used for spring producing,including compression spring,tension spring,torsion spring for medical and lighting industries.
2.Product Parameter (Specification)
|
Norminal Diameter(mm) |
Tolerance(mm) |
Surface Finish |
Tensile Strength (N/mm2) |
Plate Thickness(μm) |
|
0.40 |
±0.005 |
Bright |
2260-2550 |
>2.5 |
|
0.45 |
±0.005 |
|
2250-2500 |
>2.5 |
|
0.50 |
±0.005 |
|
2200-2470 |
>3.0 |
|
0.55 |
±0.005 |
|
2170-2430 |
>3.0 |
|
0.60 |
±0.005 |
|
2150-2350 |
>3.0 |
|
0.65 |
±0.005 |
|
2110-2350 |
>3.0 |
|
0.70 |
±0.005 |
|
2090-2350 |
>3.0 |
|
0.80 |
±0.005 |
|
2010-2300 |
>3.0 |
|
0.90 |
±0.005 |
|
2010-2260 |
>3.0 |
|
1.00 |
±0.005 |
|
1980-2220 |
>3.0 |
|
1.20 |
±0.005 |
|
1920-2160 |
>3.0 |
|
1.40 |
±0.005 |
|
1620-1860 |
>3.0 |
|
1.50 |
±0.005 |
|
1570-1810 |
>3.0 |
|
1.60 |
±0.005 |
|
1570-1810 |
>3.0 |
|
1.80 |
±0.005 |
|
1520-1770 |
>3.0 |
|
2.00 |
±0.005 |
|
1470-1650 |
>3.0 |
3.Product Details

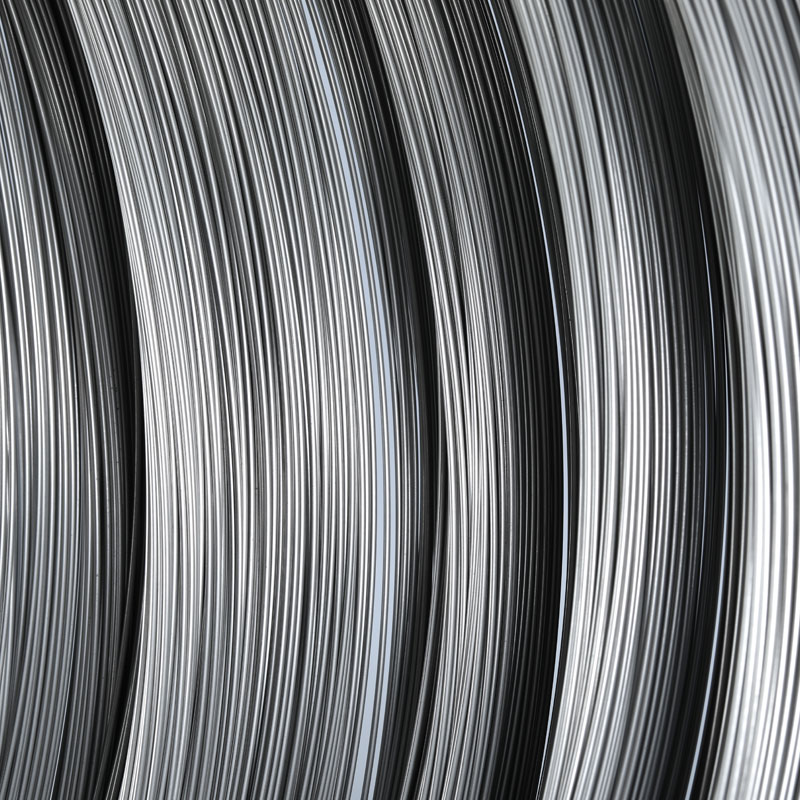

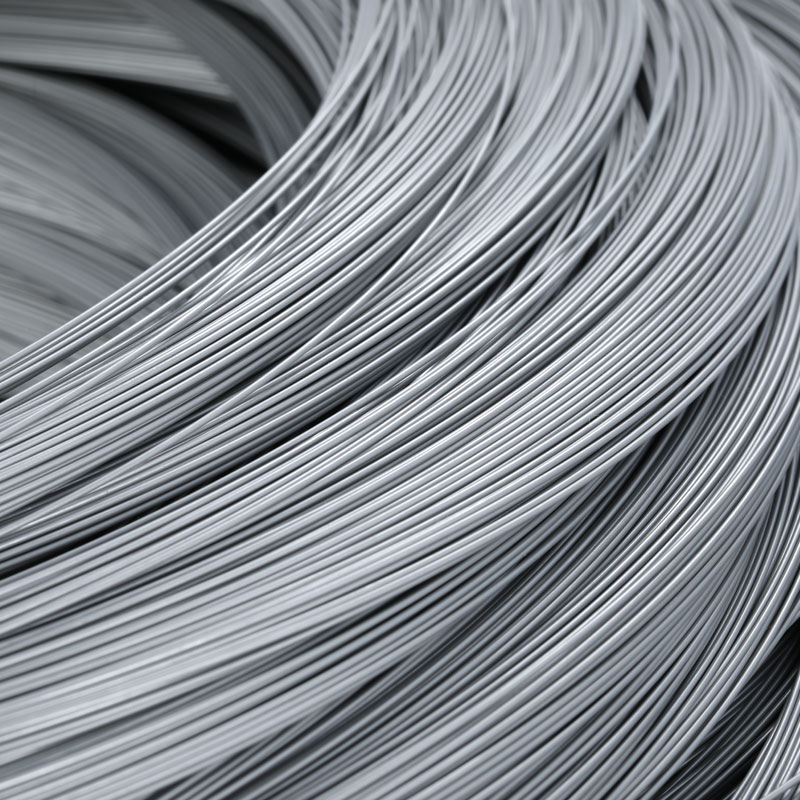

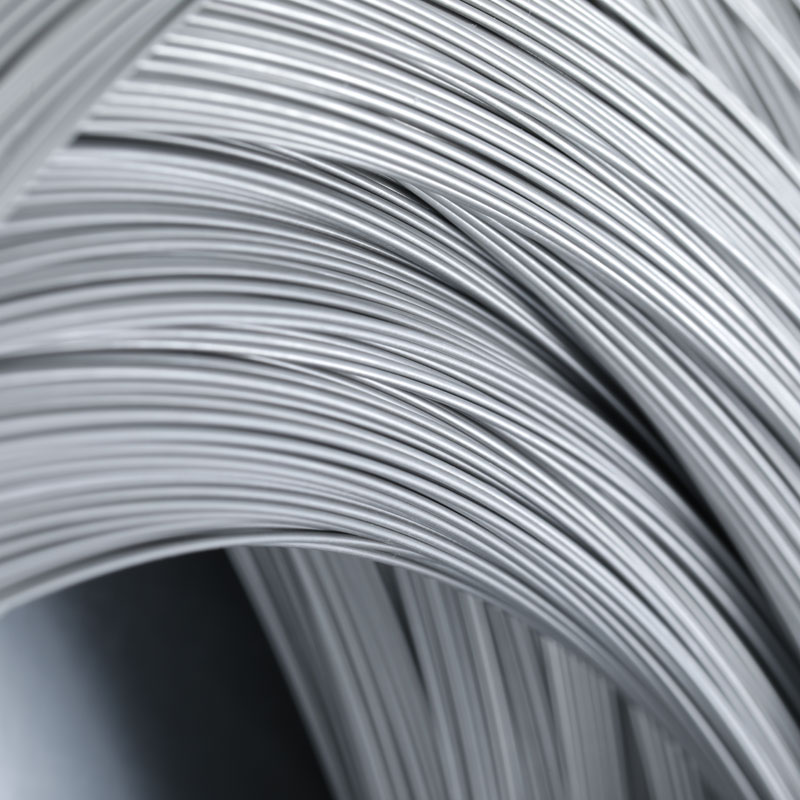

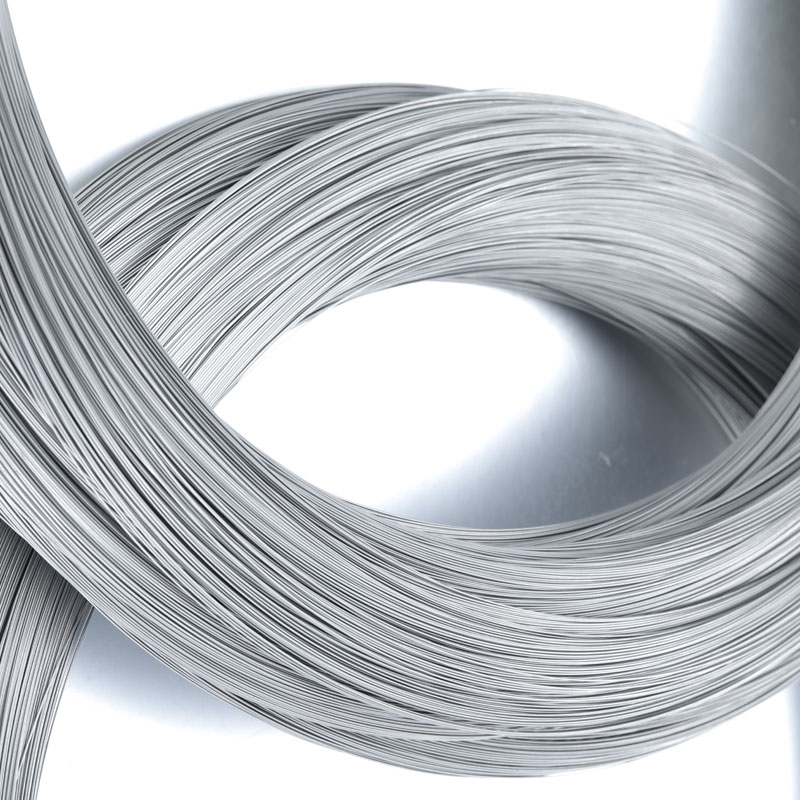

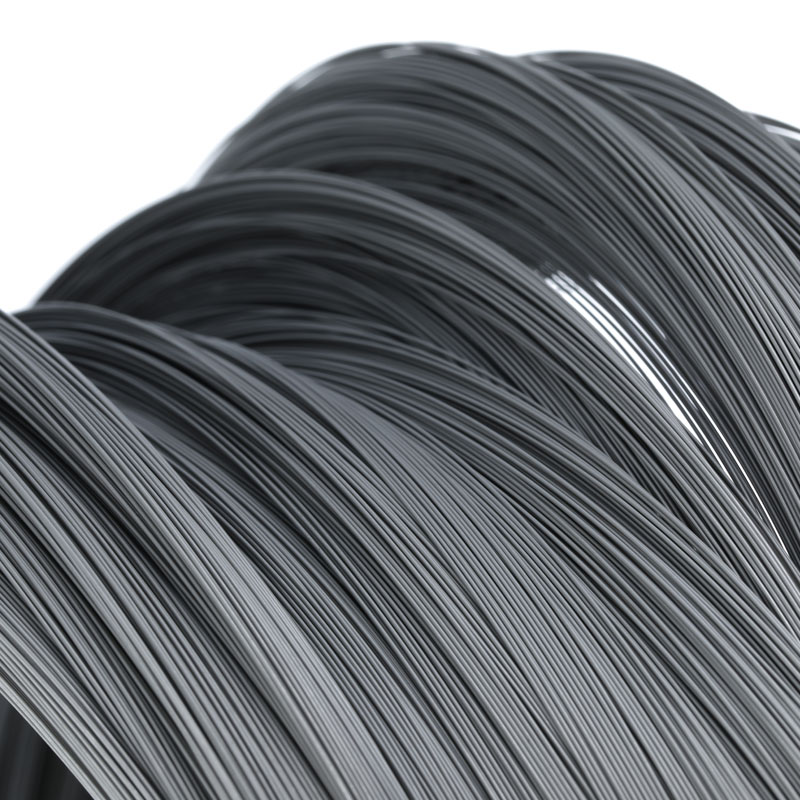

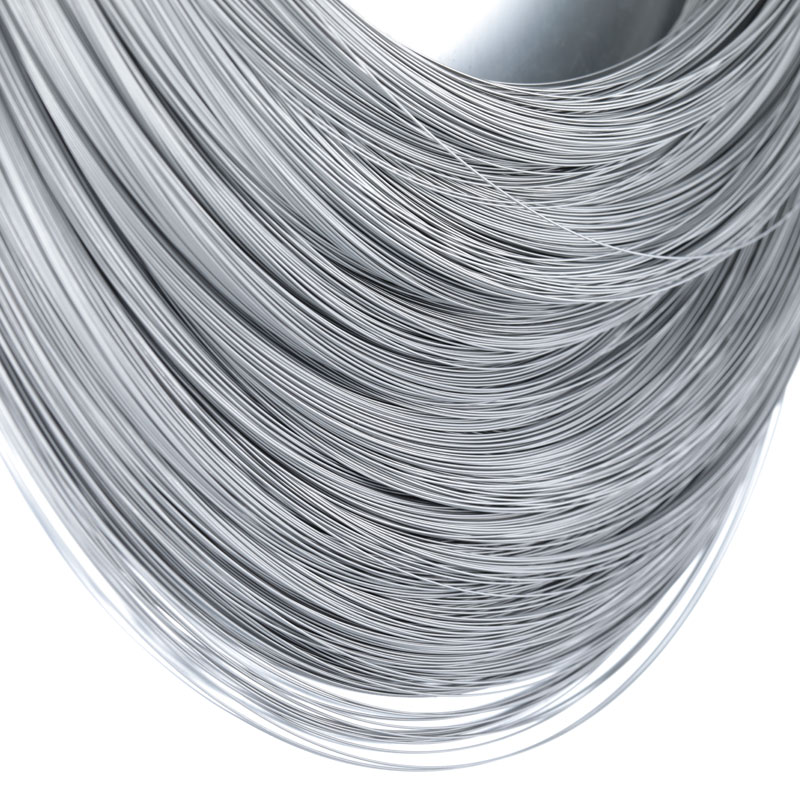

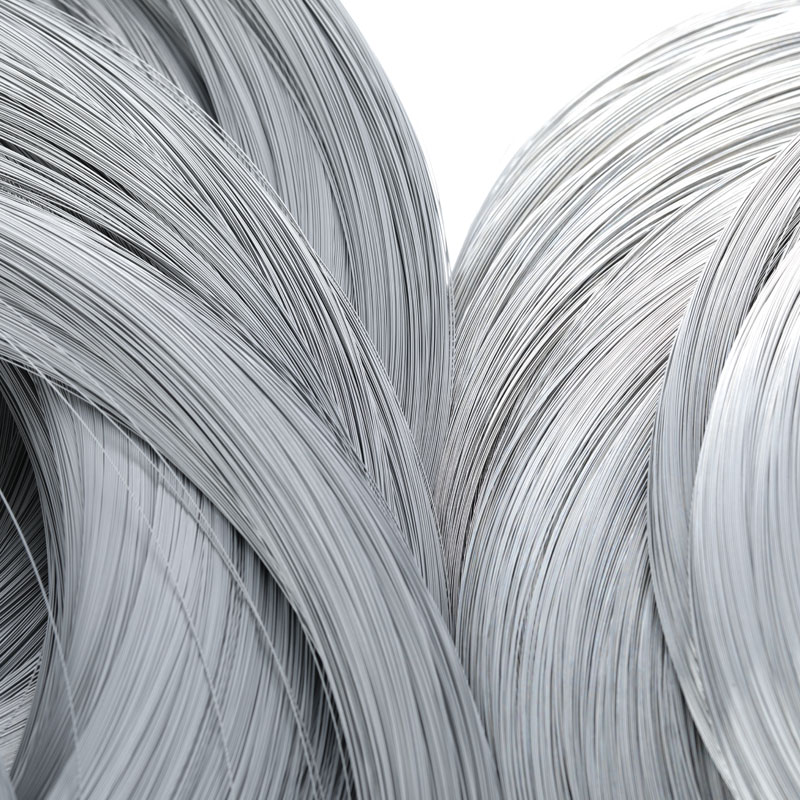

The Nickel plated steel wire can be available for choice with size range of 0.40mm to 2.00mm in bright finish.
4.Packing:
We can arrange packing with coils,spools,pallets and wooden cases.
-

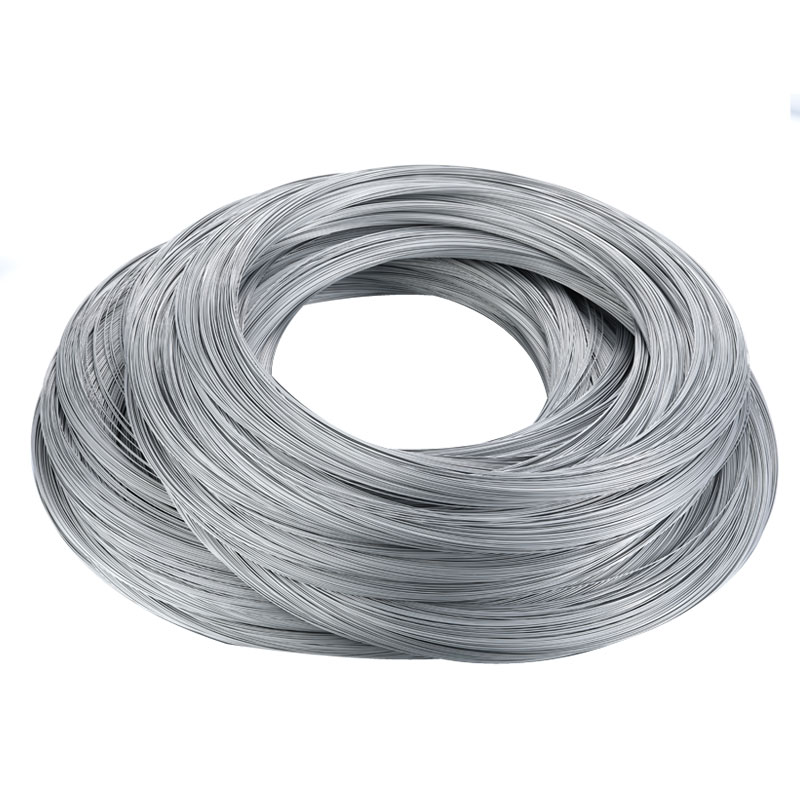

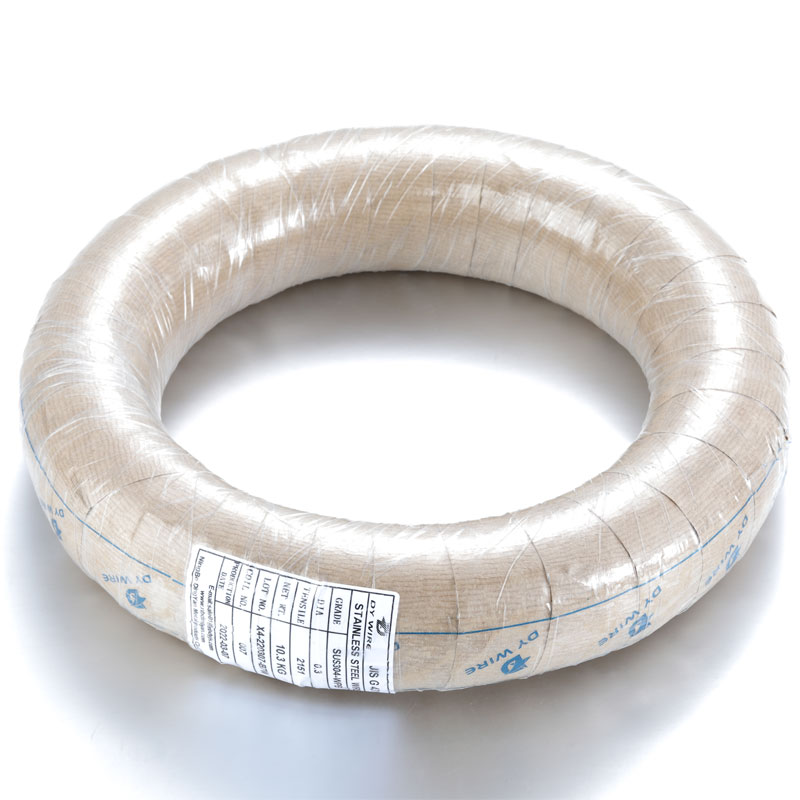

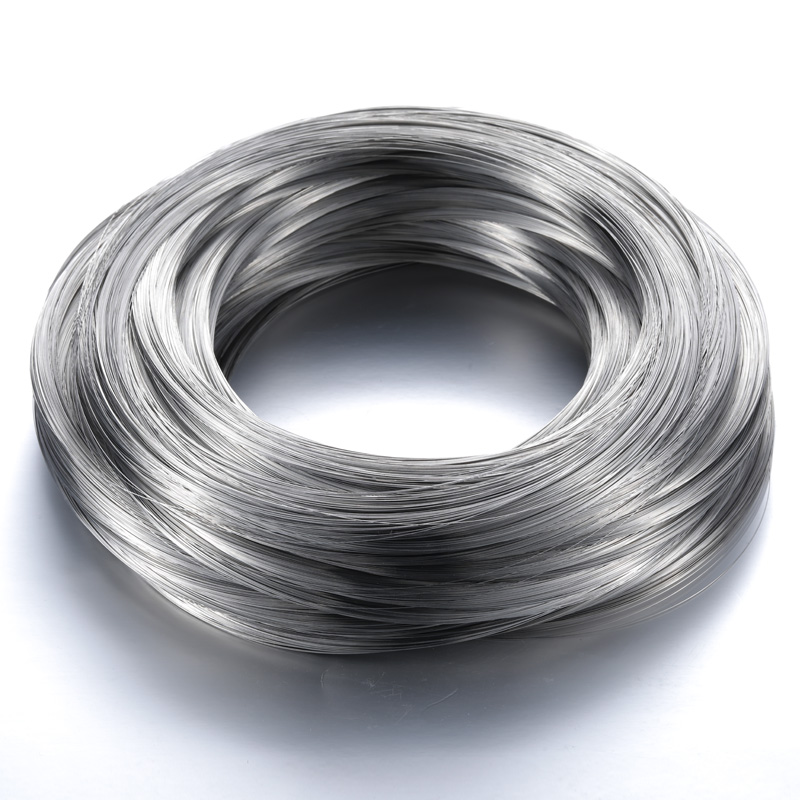

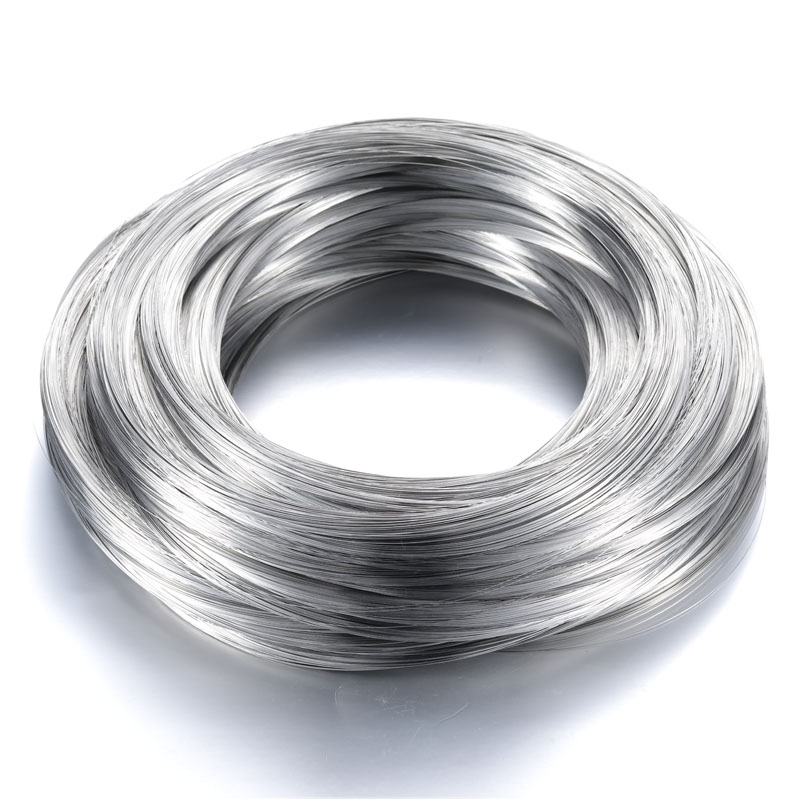

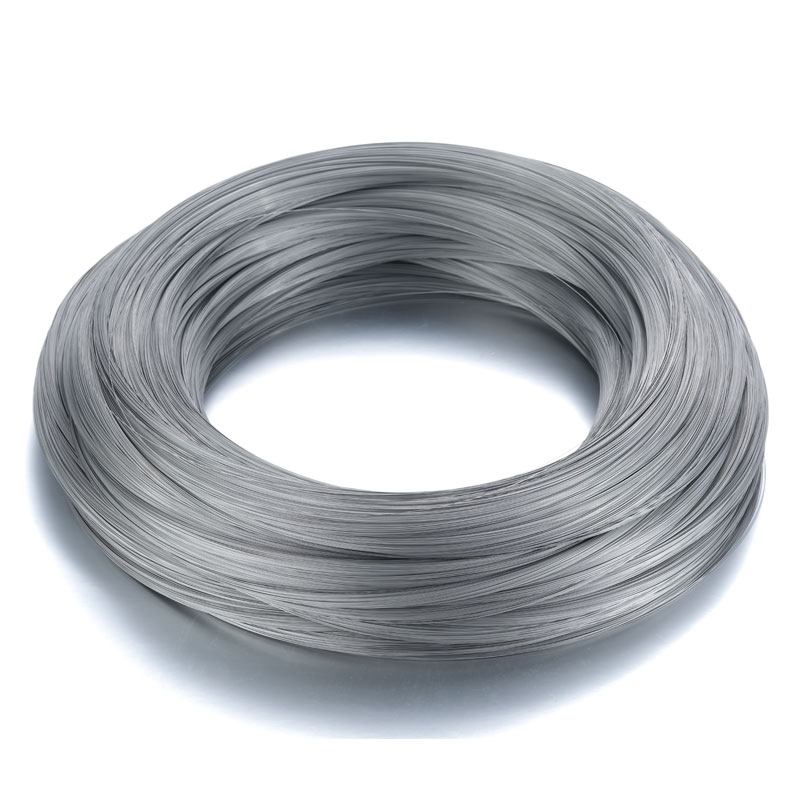

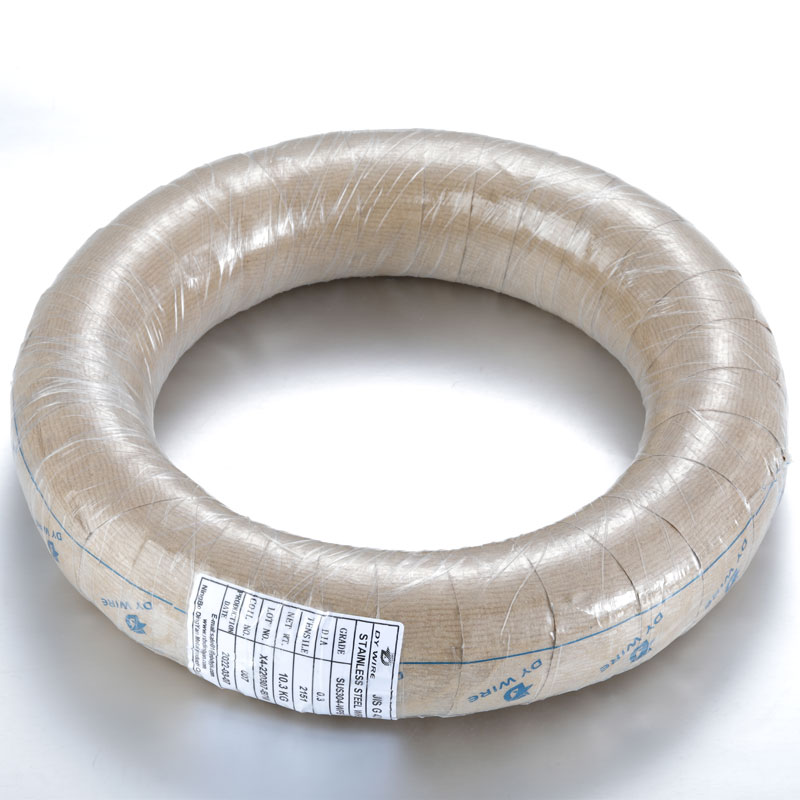

Coils
-
Plastic spools
|
Norminal Diameter(mm) |
Packing |
Approx. Weight |
|
0.40-0.60 |
DIN250 Spool/Coil |
15-30kg |
|
0.60-1.50 |
Coil |
50kg |
|
1.50-2.00 |
Coil |
50kg |
5.Advantages:
-Elemental composition is more stable;
-Better in corrosion resistance and high temperature proof,suitable for strong corrosive and high temperature environment;
-Steel ring quality:the surface of the product is smooth without cracks,safe to use;
-The products strictly use standard raw materials,and strictly control the product quality during the production process.
